QBaseModule Class Reference

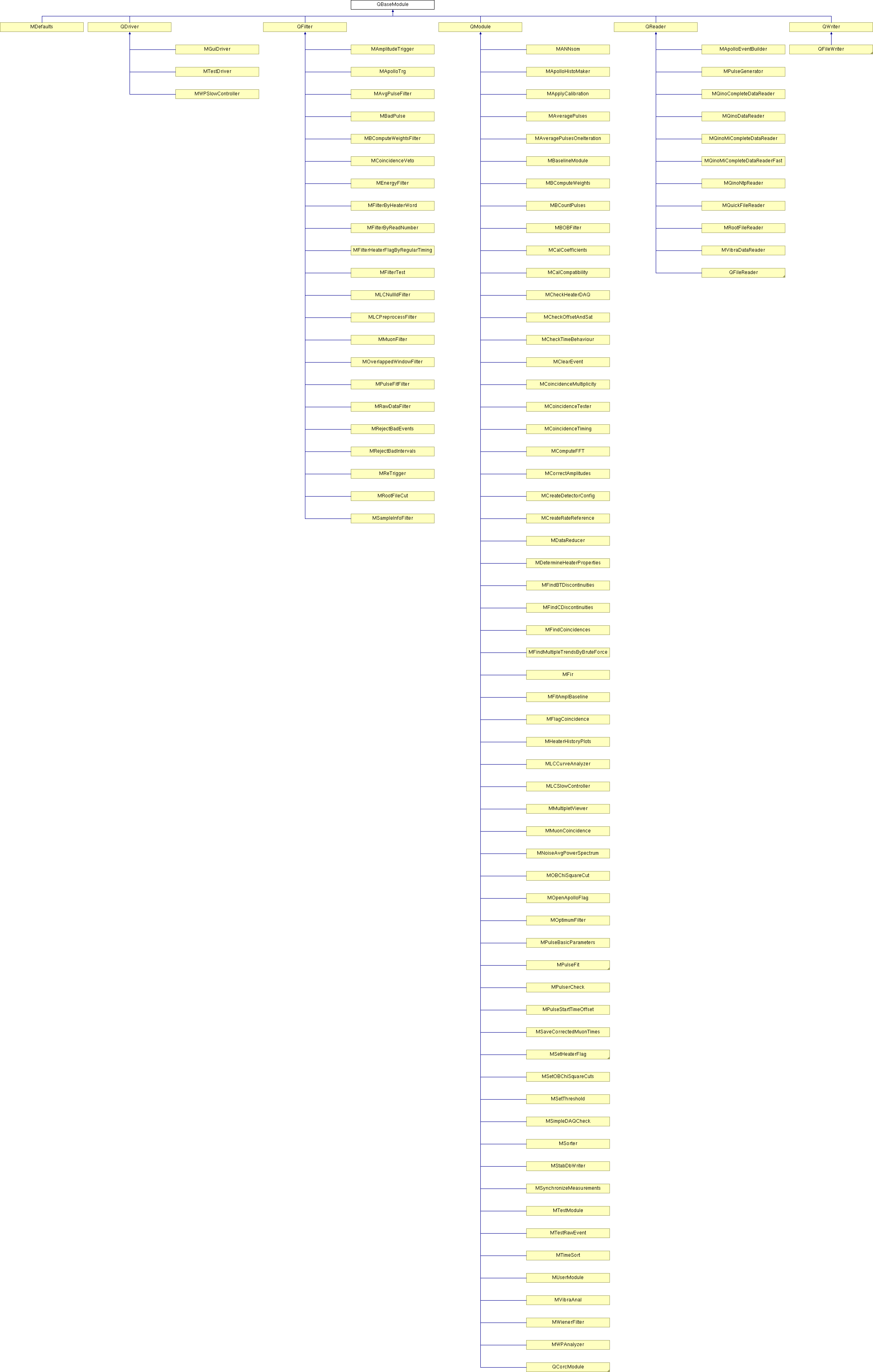

Inheritance diagram for QBaseModule:

List of all members.

---

Detailed Description

Abstract class for modules.

Author:

M. Pallavicini, M. Vignati

Each module type, like QReader and QModule have to inherit from this base class that is managed by the QSequence through the Begin(), Process() and End() methods.
Public methods are intended to be used by QSequence Proctected methods are intended to be used inside modules and define the framework interfaces to modules

Public Member Functions
	QBaseModule (const std::string &, QSequence *s)
	constructor
virtual	~QBaseModule ()
	constructor
void	BeginBase ()
	Begin method is called before event loop.
virtual void	Begin ()=0
Cuore::QEvent *	ProcessBase (Cuore::QEvent *ev)
	Process method is called for each event, getting the event as argument.
virtual Cuore::QEvent *	Process (Cuore::QEvent *ev)=0
void	EndBase ()
	End method is called after event loop.
virtual void	End ()=0
unsigned int	GetOccurrence () const
	get the number of times a same module is loaded inside a QSequence
bool	isEnabled () const
	check if module is enabled
std::string	GetFullPath () const
Protected Member Functions
double	GetDouble (const std::string &, double defVal, bool warnCfg=true) const
	Get double parameter from config file.
int	GetInt (const std::string &, int defVal, bool warnCfg=true) const
	Get int parameter from config file.
const std::string &	GetString (const std::string &, const std::string &defVal, bool warnCfg=true) const
	Get string parameter from config file.
bool	GetBool (const std::string &, bool defVal, bool warnCfg=true) const
	Get bool parameter from config file.
void	Debug (const char *descr,...) const
	Send a debug message (used to debug the module) with printf syntax.
void	Info (const char *descr,...) const
	Send an info message (information) with printf syntax.
void	Warn (const char *descr,...) const
	Send a warning message (an error that the framework can recover) with printf syntax.
void	Error (const char *descr,...) const
	Send an error message (an error that the framework cannot recover) with printf syntax.
void	Panic (const char *descr,...) const
	Send a panic message (stops the framework) with printf syntax.
bool	GetRunAgain ()
	Check if the sequence will be reiterated.
void	SetRunAgain (bool b)
	Set that the sequence will be reiterated.
unsigned int	GetIteration ()
	Get Current sequence iteration.
QGlobalDataManager &	SeqAuxData ()
	interface for saving and loading sequence variables
MsgLevel	GetVerbosity ()
	get verbosity level set from config file
QSequence &	GetSequence ()
	get a pointer to the current sequence...do not use it!
const QSequence &	GetSequence () const
void	UpdateEnableFlag ()
	update enable flag
Private Member Functions
void	SetOccurrence (unsigned int o)
	set the occurrence in the same sequence
void	SetVerbosity (MsgLevel l=WarnMsg)
Private Attributes
MsgLevel	verbosity
bool	fTimeProfilingOn
unsigned int	fOccurrence
double	fProcessTime
unsigned long long int	fProcessCalls
bool	fEnabled
QSequence *	my_sequence
Friends
class	QModFactory
class	QModuleFactory
class	QSequence

---

The documentation for this class was generated from the following files:

• /usr/local/cuore/pkg/dianaframework/QBaseModule.hh
• /usr/local/cuore/pkg/dianaframework/QBaseModule.cc

---
