QGPlot Class Reference

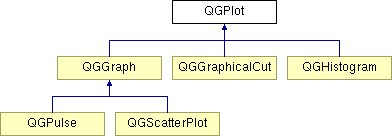

Inheritance diagram for QGPlot:

List of all members.

---

Detailed Description

Base class for GUI plots including histograms, scatter plots, pulses, and graphical cuts.

Author:

Adam Bryant (adam_bryant@berkeley.edu)

Public Member Functions
	QGPlot ()
	Default constructor.
	QGPlot (const QGPlot &)
	Copy constructor.
virtual	~QGPlot ()
	Destructor.
virtual void	AddCut (const std::string &cut)
	Add cut.
virtual void	AutoSetStyle ()
	Automatically set the plot style, should be overridden by derived classes.
virtual void	Display ()
	Display plot, should be overridden by derived classes.
virtual void	DisplayEditWindow ()
	Display edit window for the plot, should be overridden by derived classes.
virtual void	Duplicate ()
	Duplicate the plot, should be overridden by derived classes.
virtual void	Erase ()
	Erase plot, should be overridden by derived classes.
virtual void	Generate (QChain *chain=0)
	Generate plot from chain of data files, should be overridden by derived classes.
virtual std::string	GeneratePlotName (const std::string &baseName) const
	Generate a name for the plot.
virtual TCanvas *	GetCanvas ()
	Get pointer to the associated canvas.
virtual QGCanvasWindow *	GetCanvasWindow () const
	Get pointer to the canvas window to which the plot is associated.
virtual void	GetCanvasWindowFromEditWindow ()
	Get canvas window from edit window.
virtual const std::vector< std::string > &	GetCuts () const
	Get cuts applied to make the plot.
virtual void	GetCutsFromEditWindow ()
	Get cuts from edit window.
virtual QGPlotEditWindow *	GetEditWindow ()
	Get pointer to edit window.
virtual const char *	GetName () const
	Get plot name, should be overridden by derived classes.
virtual void	GetParametersFromEditWindow ()
	Get parameters from edit window, should be overridden by derived classes.
virtual const std::string &	GetXUnits () const
	Get x-axis units.
virtual const std::string &	GetXVariable () const
	Get x-axis variable.
virtual const std::string &	GetYUnits () const
	Get y-axis units.
virtual const std::string &	GetYVariable () const
	Get y-axis variable.
virtual bool	IsNameInUse (const std::string &name) const
	Check whether string is the name of any plot.
virtual bool	IsSuperimposeSet () const
	Return true if plot is set to be superimposed.
virtual void	MakeCutsString ()
	Make cuts string.
virtual bool	NeedsRegeneration () const
	Check whether plot needs to be regenerated.
virtual void	Plot ()
	Plot this in the associated canvas window, generating it if necessary.
virtual void	SetCanvasWindow (QGCanvasWindow *window)
	Set the canvas window to which the plot is associated.
virtual void	SetCuts (const std::vector< std::string > &cuts)
	Set cuts to apply in generating the plot.
virtual void	SetName (const char *name=0)
	Set plot name.
virtual void	SetPlotEditWindow (QGPlotEditWindow *window)
	Set plot edit window.
virtual void	SetProperty (const std::string &key, const std::string &value)
	Set property (used for opening a session).
virtual void	SetRegenerate (bool flag=true)
	Set whether the plot needs to be regenerated.
virtual void	SetSuperimpose (bool flag=false)
	Set whether the plot should be superimposed.
virtual void	SetXVariable (const std::string &x)
	Set X-axis variable.
virtual void	SetXUnits (const std::string &units)
	Set X-axis units.
virtual void	SetYVariable (const std::string &y)
	Set Y-axis variable.
virtual void	SetYUnits (const std::string &units)
	Set Y-axis units.
Static Public Member Functions
static QGPlot *	GetPlotByName (const std::string &name)
	Get plot by name.
static const std::list< QGPlot * > &	GetPlots ()
	Get collection of plots.
static void	ShowPlotsList ()
	Show plots list.
Protected Attributes
QGCanvasWindow *	fCanvasWindow
	Canvas window to which plot is associated.
std::vector< std::string >	fCuts
	Cuts applied to make the plot.
std::string	fCutsString
	Cuts in a single string.
bool	fNeedsRegeneration
	Indicates whether plot needs to be regenerated because settings have changed.
QGPlotEditWindow *	fPlotEditWindow
	Pointer to plot edit window.
bool	fSuperimpose
	Indicates whether plot should be superimposed on existing plot.
std::string	fXVariable
	X-axis variable.
std::string	fXUnits
	X-axis units.
std::string	fYVariable
	Y-axis variable.
std::string	fYUnits
	Y-axis units.
Static Protected Attributes
static std::list< QGPlot * >	fPlots
	Collection of pointers to all QGPlots.

---

The documentation for this class was generated from the following files:

• /usr/local/cuore/pkg/dianagui/QGPlot.hh
• /usr/local/cuore/pkg/dianagui/QGPlot.cc

---
