QGPlotEditWindow Class Reference

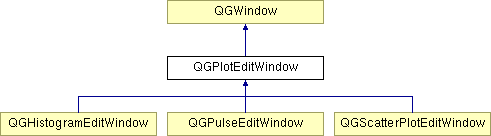

Inheritance diagram for QGPlotEditWindow:

List of all members.

---

Detailed Description

Base class for plot edit windows.

Author:

Adam Bryant (adam_bryant@berkeley.edu)

Public Member Functions
	QGPlotEditWindow (const TGWindow *p=0, UInt_t w=280, UInt_t h=450)
	Constructor.
virtual	~QGPlotEditWindow ()
	Destructor.
virtual void	FillVariablesDropDownBoxes ()=0
	Fill drop down boxes with variables from the chain, must be overridden by derived classes.
QGPlotEditButtonsFrame *	GetButtonsFrame ()
	Get pointer to the buttons frame.
QGCutsFrame *	GetCutsFrame ()
	Get pointer to the cuts frame.
virtual QGPlot *	GetPlot ()=0
	Get pointer to plot, pure virtual function must be overriden by derived classes.
QGPlotStyleFrame *	GetPlotStyleFrame ()
	Get pointer to the plot style frame.
virtual void	SetPlot (QGPlot *plot)=0
	Set plot, pure virtual function must be overriden by derived classes.
void	ShowButtonsFrame ()
	Show buttons frame.
void	ShowCutsFrame ()
	Show cuts frame.
void	ShowPlotStyleFrame ()
	Show plot style frame.
Protected Attributes
QGPlotEditButtonsFrame *	fButtonsFrame
	Buttons frame.
QGCutsFrame *	fCutsFrame
	Cuts frame.
QGPlotStyleFrame *	fPlotStyleFrame
	Canvas for plot style.

---

The documentation for this class was generated from the following files:

• /usr/local/cuore/pkg/dianagui/QGPlotEditWindow.hh
• /usr/local/cuore/pkg/dianagui/QGPlotEditWindow.cc

---
